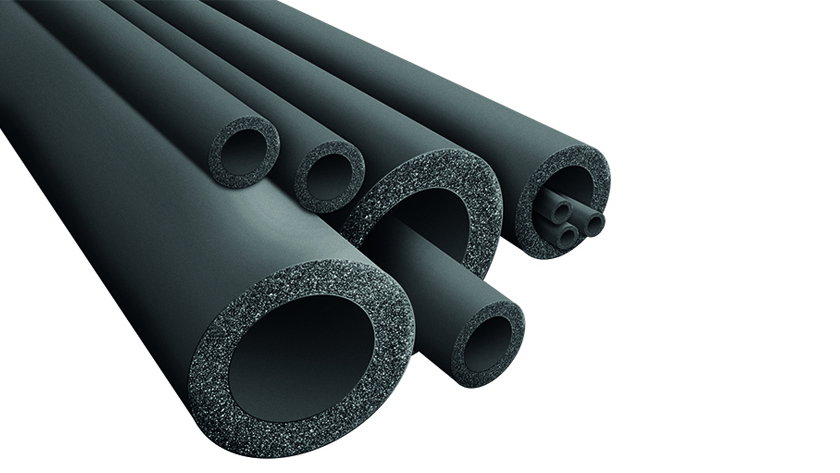

It is used for insulation purposes in heating and cooling installations. It is a tubular insulation material with closed pores and smooth cell structure. With its high thermal insulation performance and high water vapor diffusion resistance coefficient, it provides energy efficiency in installation insulation and protection of the installation. During the application, the inner surface of the insulation and the installation pipe should be in contact with each other and no gaps should be allowed between them. Since deformation of the insulation during the application will create a thermal bridge, a complete insulation should be made. Outdoor applications should be covered immediately after installation.
- It has a density of 50-60 kg / m³.
- Usage temperature is between -40 / + 120 ° C.
- It is environmentally friendly.
- Maximum savings.
| Copper | Steel | 6mm | 9mm | 13mm | 19mm | 25mm | 32mm | |
|---|---|---|---|---|---|---|---|---|
| mm | Inch | Inch | m/kt | m/kt | m/kt | m/kt | m/kt | m/kt |
| 6 | 1/4″1/4″ | 496 | 352 | – | – | – | – | |
| 8 | 5/16″ | 432 | 300 | – | – | – | – | |
| 10 | 3/8″ | 1/8″ | 364 | 266 | 172 | – | – | – |
| 12 | 1/2″ | 316 | 234 | 162 | – | – | – | |
| 15 | 5/8″ | 266 | 192 | 136 | – | – | – | |
| 18 | 3/4″ | 3/8″ | 220 | 166 | 118 | 72 | 50 | – |
| 22 | 7/8″ | 1/2″ | 180 | 136 | 98 | 64 | 42 | – |
| 25 | 1″ | 150 | 116 | 88 | 56 | 40 | – | |
| 28 | 1 1/8″ | 3/4″ | 130 | 98 | 78 | 48 | 40 | – |
| 35 | 1 3/8″ | 1″ | 100 | 76 | 58 | 36 | 24 | 22 |
| 42 | 1 5/8″ | 1 1/4″ | 90 | 70 | 48 | 32 | 22 | 16 |
| 48 | 2 3/8″ | 1 1/2″ | – | 50 | 40 | 24 | 18 | 14 |
| 54 | 2 1/8″ | – | 50 | 40 | 24 | 16 | 14 | |
| 60 | 3″ | 2″ | – | 46 | 32 | 22 | 14 | 12 |
| 67 | 2 5/8″ | – | 44 | 30 | 20 | 14 | 12 | |
| 76 | 3 1/2″ | 2 1/2″ | – | 40 | 30 | 18 | 12 | 10 |
| 80 | 3 1/8″ | – | 40 | 30 | 18 | 12 | 10 | |
| 89 | 4 1/2″ | 3″ | – | 36 | 28 | 14 | 12 | 8 |
| 102 | 3 1/2″ | – | 34 | 26 | 14 | 12 | 8 | |
| 108 | 4 1/4″ | – | 30 | 22 | 14 | 12 | 8 | |
| 114 | 4″ | – | 26 | 20 | 12 | 10 | 8 |
Production is made between 6 mm and 114 mm diameter.
It is available in thicknesses of 6,9,13,19,25,32 mm.
You can call us in order not to miss the special price advantage for elastomeric rubber foam insulation pipes in bulk purchases.
