There is a corner in accordance with the flange profiles. Simplification of stiffness channel channels on behalf of the flange. Available in 20, 25, and 30 mm sizes. Air duct corner piece, corner pieces are produced in flat form and plastered in accordance with the flange profile. The name of the stiffness channels channels of the flanges interconnected with each other minimizes.
- There are corner elements in accordance with the flange profiles.
- It reduces the effects of channel vibrations by providing rigidity in the flange connection.

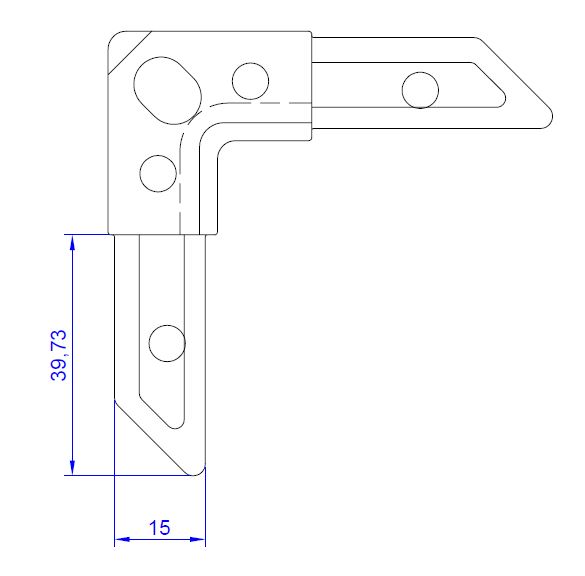

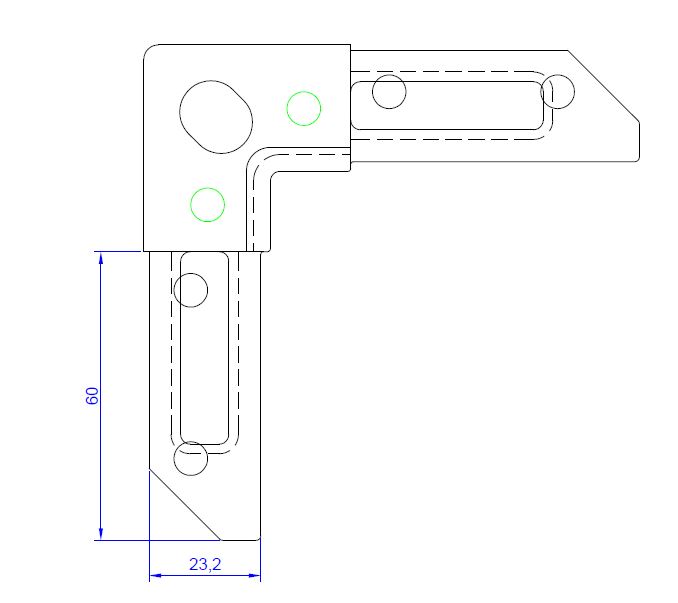

- It has dimensions of 20,25 and 30 mm.
MODEL | THICKNESS (mm) | NUMBER/CONTAINER |
---|---|---|
Corner 20 | 2 | 500 |
Corner 25 | 2 | 400 |
Corner 30 | 2 | 250 |
Rust-Free Corner 20 | 2 | 500 |
Rust-Free Corner 25 | 2 | 500 |
Rust-Free Corner 30 | 2 | 250 |

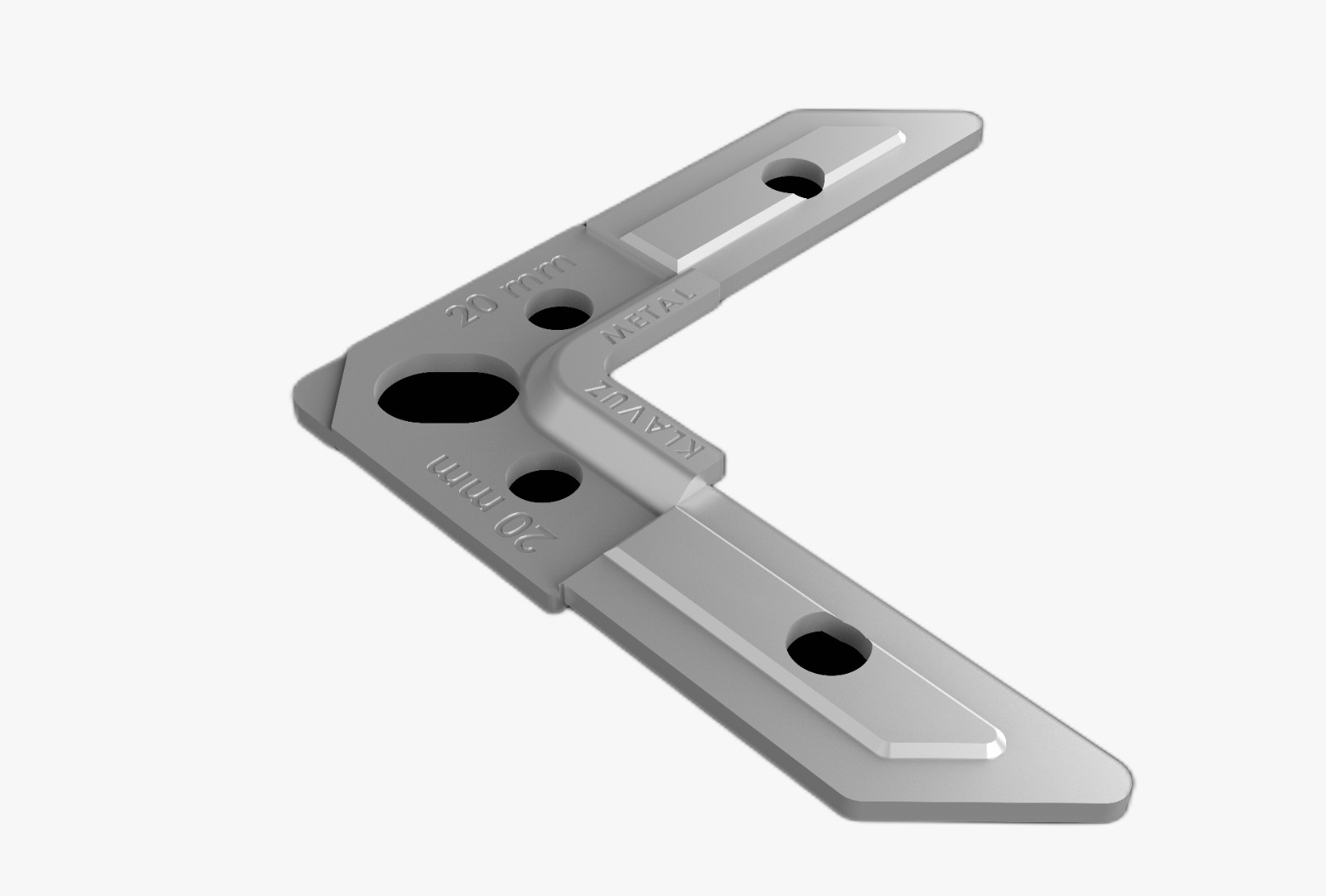

Corner elements are the side corner fittings used to join the flange profiles required to assemble the ventilation ducts to each other. The connection bolt should always be suitable and of the same size as the clamp bolts so that the assembly can carry the same pulling value. It is coated with electro-galvanized against corrosion. The purpose of the corner elements is to complete the flange connections without error, to prevent air leakage from the duct corners in the duct flexing and to increase the duct strength.
Production is made in desired lengths.
There are corner 20, 25, 30 and rust-free corner 20, 25 and 30 models.
You can call us in order not to miss the special price advantage for the corner in bulk purchases.
