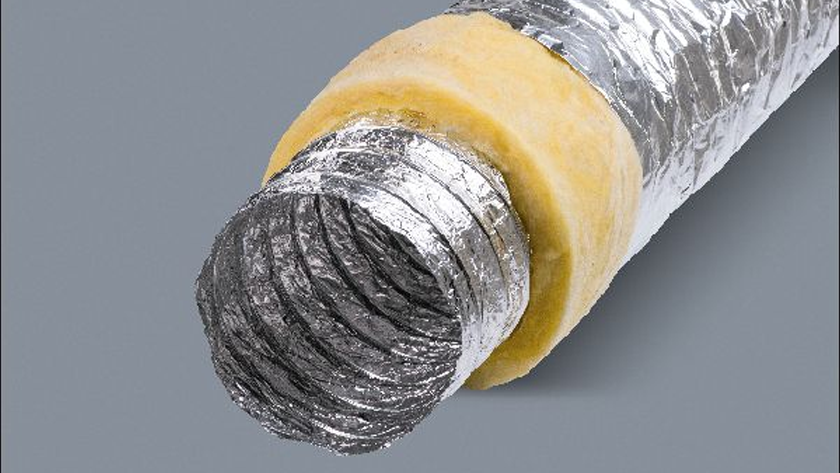

It has been developed and produced for use in medium and low pressure heating, cooling, ventilation and waste gas transition lines. It is manufactured in accordance with ISO 9001-2008 quality management system and TS EN 13180 standard by coating with mattress type glass wool on the pipe manufactured by using high tensile steel wire, aluminum polyester lamination and metallized polyester, and then coating with polyester laminated aluminum material. The smooth surface provided by the metallized polyester used on the inner surface both reduces pressure loss and provides a more hygienic environment that prevents the growth of bacteria.
- Skeleton made of high tensile steel wire
- Airtight
- High tensile and impact resistance
- Does not cause toxic gas release during fire
Material | Aluminum + Metallized Polyester |
Temperature Resistance | -30 °C / 80 °C |
Max. Air Speed | 30 m/s |
Max. Operating Pressure | 5.000 Pa |
Diameter Range | Ø 52 mm – Ø 610 mm |
Standard Presentation Type | 10 m/container |
Temperature resistance is between -30 ° C and 80 ° C.
Maximum air speed is 30 m / s.
